CNC Controller for Lathe Turning Machine
54999.0 INR/Piece
Product Details:
- Accuracy High precision control, repeatability 0.005 mm
- Spindle Speed 1-6000 RPM compatible
- Cutting Speed Supports up to 4000 mm/min program control
- Hardness N/A (electronic device)
- Load Capacity Up to 5 axis control
- Shape Rectangular controller module
- Machine Type Lathe Turning Machine
- Click to View more
X
CNC Controller for Lathe Turning Machine Price And Quantity
- 1 Piece
- 54999.0 INR/Piece
CNC Controller for Lathe Turning Machine Product Specifications
- Standard module: approx. 320 mm x 230 mm x 120 mm
- ~5 kg
- Yes
- Digital electronic automation
- Powder coated housing
- CNC lathe operation, turning centers, metalworking automation
- 0.01 mm
- Automated control of lathe turning machines
- Industrial grade electronics, steel housing
- Lathe Turning Machine
- Up to 5 axis control
- Rectangular controller module
- N/A (electronic device)
- Lathe turning, precision machining
- Supports up to 4000 mm/min program control
- 1-6000 RPM compatible
- High quality, smooth finish
- High precision control, repeatability 0.005 mm
- CNC Controller Unit
- 2-4 axis, expandable
- 0C to 45C
- Integrated for data protection
- Tool compensation, macro programming, real-time editing
- Fan-cooled housing
- RS232, USB, Ethernet
- G-code compatible, ISO standard
- AC220V10%, 50/60Hz
- 512MB internal memory
- Overload, emergency stop, error diagnostics
- Supported via USB
- Panel or standalone cabinet mounting
- Stepper & servo motor interface
- Wired, with USB and Ethernet connectivity
- 7-inch color TFT LCD
CNC Controller for Lathe Turning Machine Trade Information
- INDIA
- Cash in Advance (CID), Cheque
- 100 Piece Per Day
- 1 Days
- Contact us for information regarding our sample policy
- Corrugated box
- All India

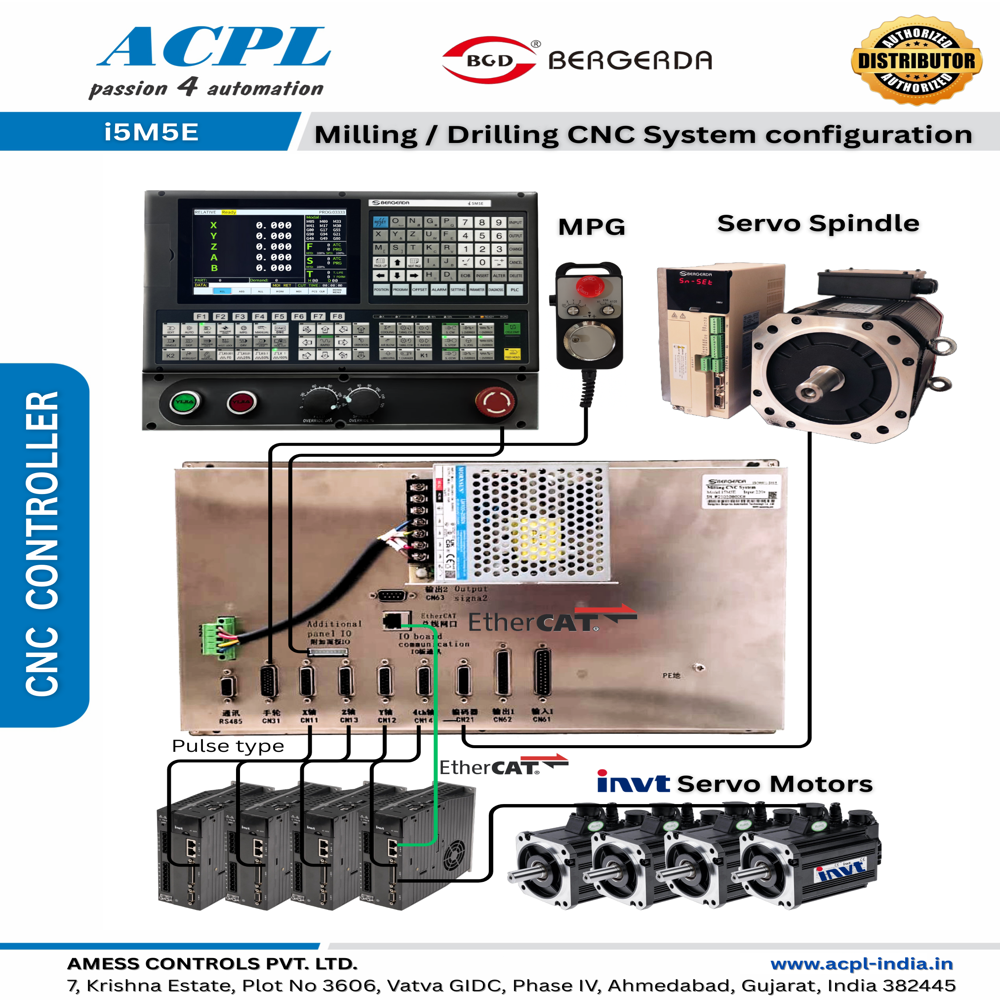

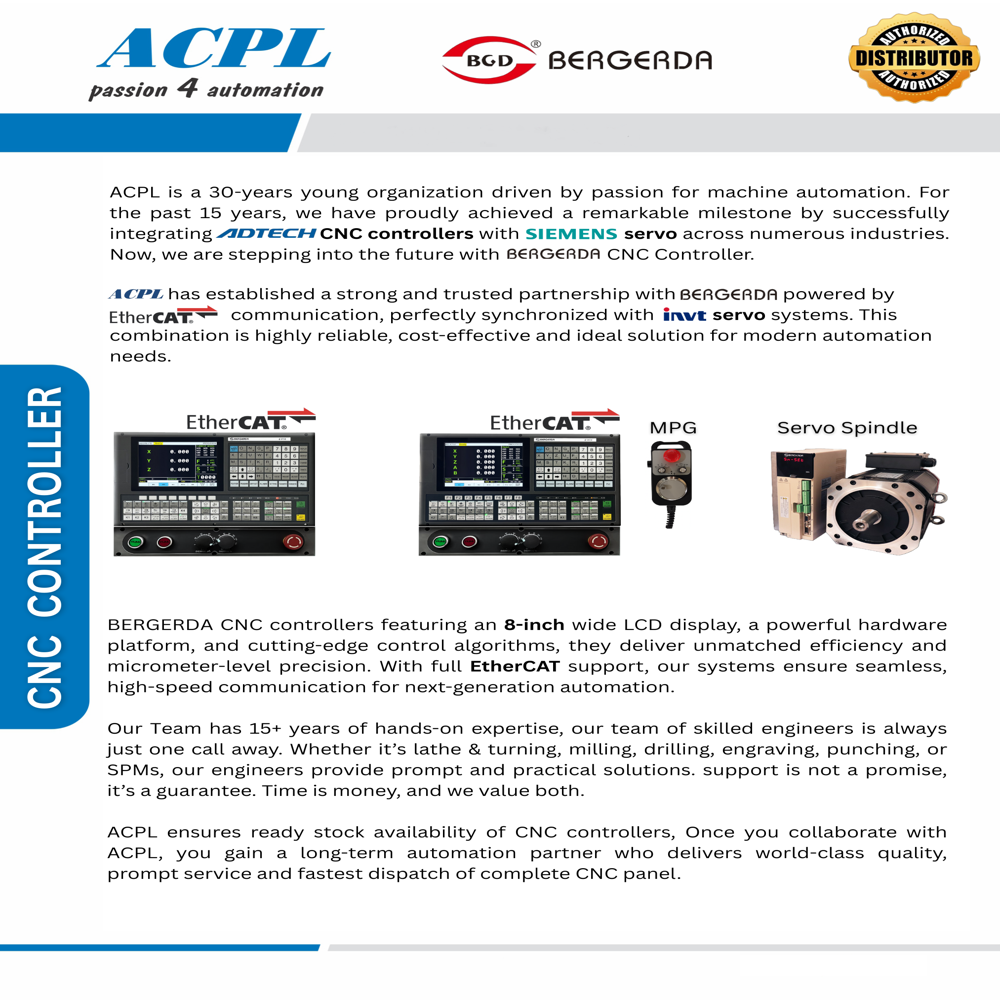

- ACPL has established a strong and trusted partnership with BERGERDA powered by EhterCAT communication, perfectly synchronized with INVT Absolute servo systems. This combination is highly reliable, cost-effective and ideal solution for modern automation needs.
Product Description

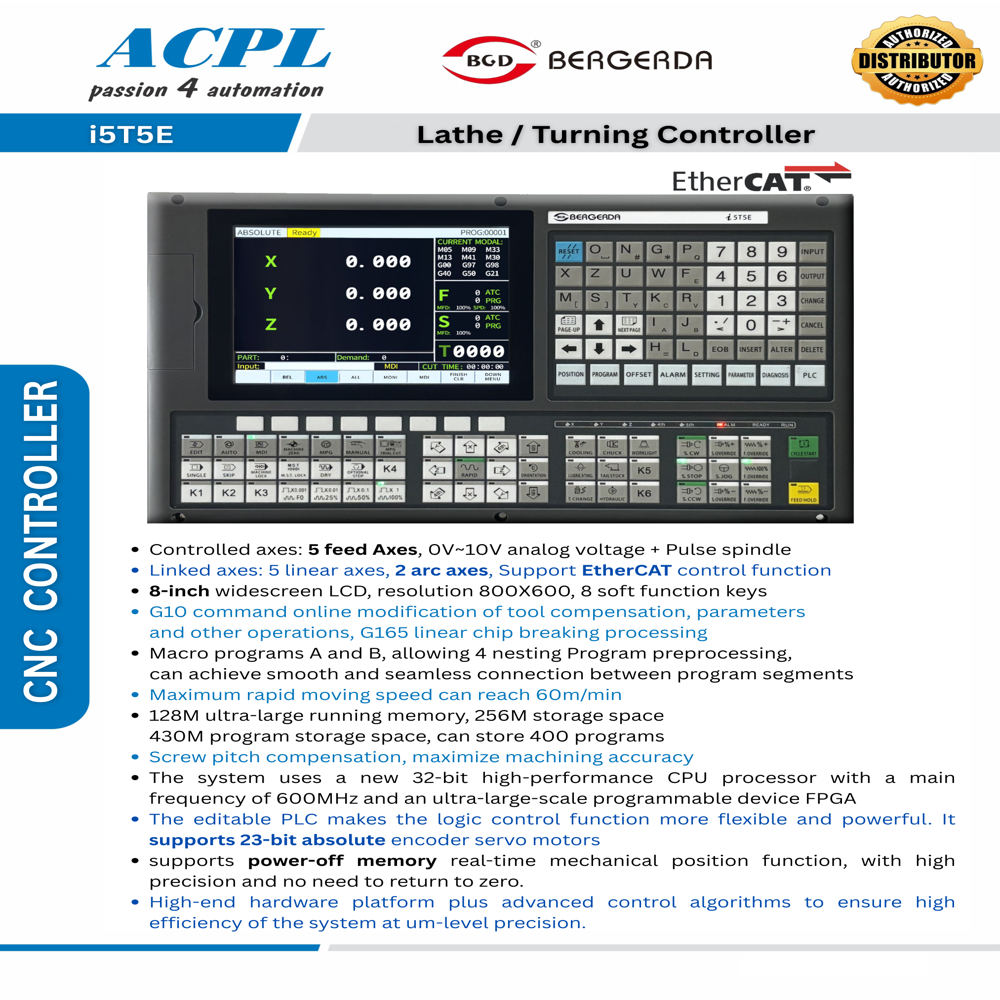

- Controlled axes: 5 feed Axes, 0V10V analog voltage + Pulse spindle
- Linked axes: 5 linear axes, 2 arc axes, Support EtherCAT control function
- 8-inch widescreen LCD, resolution 800X600, 8 soft function keys
- G10 command online modification of tool compensation, parameters
and other operations, G165 linear chip breaking processing
- Macro programs A and B, allowing 4 nesting Program preprocessing,
can achieve smooth and seamless connection between program segments
- Maximum rapid moving speed can reach 60m/min
- 128M ultra-large running memory, 256M storage space
430M program storage space, can store 400 programs
- Screw pitch compensation, maximize machining accuracy
- The system uses a new 32-bit high-performance CPU processor with a main frequency of 600MHz and an ultra-large-scale programmable device FPGA
- The editable PLC makes the logic control function more flexible and powerful. It supports 23-bit absolute encoder servo motors
- supports power-off memory real-time mechanical position function, with high precision and no need to return to zero.
- High-end hardware platform plus advanced control algorithms to ensure high efficiency of the system at um-level precision.
Advanced Connectivity and Easy Integration
This controller supports seamless integration into modern machining environments, allowing USB and Ethernet connectivity for fast file transfers and remote diagnostics. The flexible interface options, including RS232, make it compatible with a wide range of lathe turning machines and automation setups, enhancing productivity and workflow efficiency.
User-Friendly Design and Versatile Mounting
Equipped with a 7-inch color TFT LCD, the controller provides intuitive operation and real-time editing, ensuring user comfort during programming. Options for panel or standalone cabinet mounting cater to diverse operational requirements, making it suitable for workshops of varying layouts and scales.
Precision Performance and Robust Safety Features
Supporting up to 5 axes, this controller delivers high-precision machining with a repeatability of 0.005 mm and a tolerance of 0.01 mm. Built-in alarm functions-including overload protection, emergency stop, and error diagnostics-prioritize safe operations, safeguarding both machine and personnel.
FAQ's of CNC Controller for Lathe Turning Machine:
Q: How do I connect this CNC controller to my lathe turning machine?
A: You can connect the controller using wired interfaces via RS232, USB, or Ethernet, ensuring compatibility with most modern CNC lathe turning machines. The versatile connectivity supports both panel and cabinet mounting, offering flexibility for integration into different machine setups.Q: What type of programming language does the controller support for CNC operations?
A: This CNC controller is G-code compatible and meets ISO standards, allowing you to use industry-standard CNC programming. Macro programming and real-time editing features provide additional versatility for advanced automation tasks.Q: When should I use the built-in alarm functions?
A: Alarm functions are automatically activated in cases such as machine overloads, emergency stop situations, or detected system errors. These functions help prevent damage, enhance safety, and provide clear diagnostics for prompt troubleshooting.Q: Where can I upgrade the firmware and backup critical data?
A: Firmware upgrades and data backup/restore can be conveniently performed via the integrated USB port. The controller's backup battery ensures that essential settings and programs are protected during power interruptions.Q: What benefits does the 7-inch color TFT LCD display offer?
A: The large color display provides enhanced visibility for programming, real-time monitoring, and error diagnostics. Its user-friendly interface improves workflow, reduces operator error, and streamlines setup and machine operation.Q: How can I maximize the accuracy and repeatability of this controller?
A: By utilizing the tool compensation and precision parameter settings, the system achieves repeatability of 0.005 mm and a tolerance of 0.01 mm, ensuring consistent results in precision turning and high-speed machining applications.Tell us about your requirement
