CNC Controller for Milling Drilling Machine
70000.0 INR/Piece
Product Details:
- Hardness N/A (Controller unit)
- Spindle Speed Program-controlled (depends on connected machine)
- Coating Anti-static coating
- Cutting Speed Program-controlled (depends on connected machine)
- Accuracy 0.01 mm
- Machine Type CNC Milling Drilling Machine
- Weight 4.5 kg
- Click to View more
X
CNC Controller for Milling Drilling Machine Price And Quantity
- 70000.0 INR/Piece
- 1 Piece
CNC Controller for Milling Drilling Machine Product Specifications
- CNC Controller Unit
- Matte finish
- Rectangular Module
- Numerical Control
- 350 mm x 250 mm x 100 mm
- CNC Milling Drilling Machine
- N/A (Controller unit)
- 4.5 kg
- CNC Milling Drilling Machine
- Milling and drilling operations
- Yes
- Anti-static coating
- Program-controlled (depends on connected machine)
- Industrial-grade Plastic and Metal Alloy
- 0.01 mm
- 0.01 mm
- Program-controlled (depends on connected machine)
- N/A (Controller unit)
- Automated control for milling and drilling machines in manufacturing industries
- Panel mounted or standalone
- 0C to 45C
- 220V AC, 50/60Hz
- 512 MB internal memory, extendable via USB
- Supported via Ethernet
- Compatible with common CAD/CAM software
- Up to 4-axis simultaneous control
- Multiple digital and analog I/O ports
- USB, RS232, Ethernet
- 120W max
- Real-time error detection and alarm
- Built-in fan cooling system
- 7-inch LCD touch screen
- G-code/ISO
CNC Controller for Milling Drilling Machine Trade Information
- INDIA
- Cash in Advance (CID), Cheque
- 100 Piece Per Day
- 1 Days
- No
- Contact us for information regarding our sample policy
- Corrugated Box
- All India

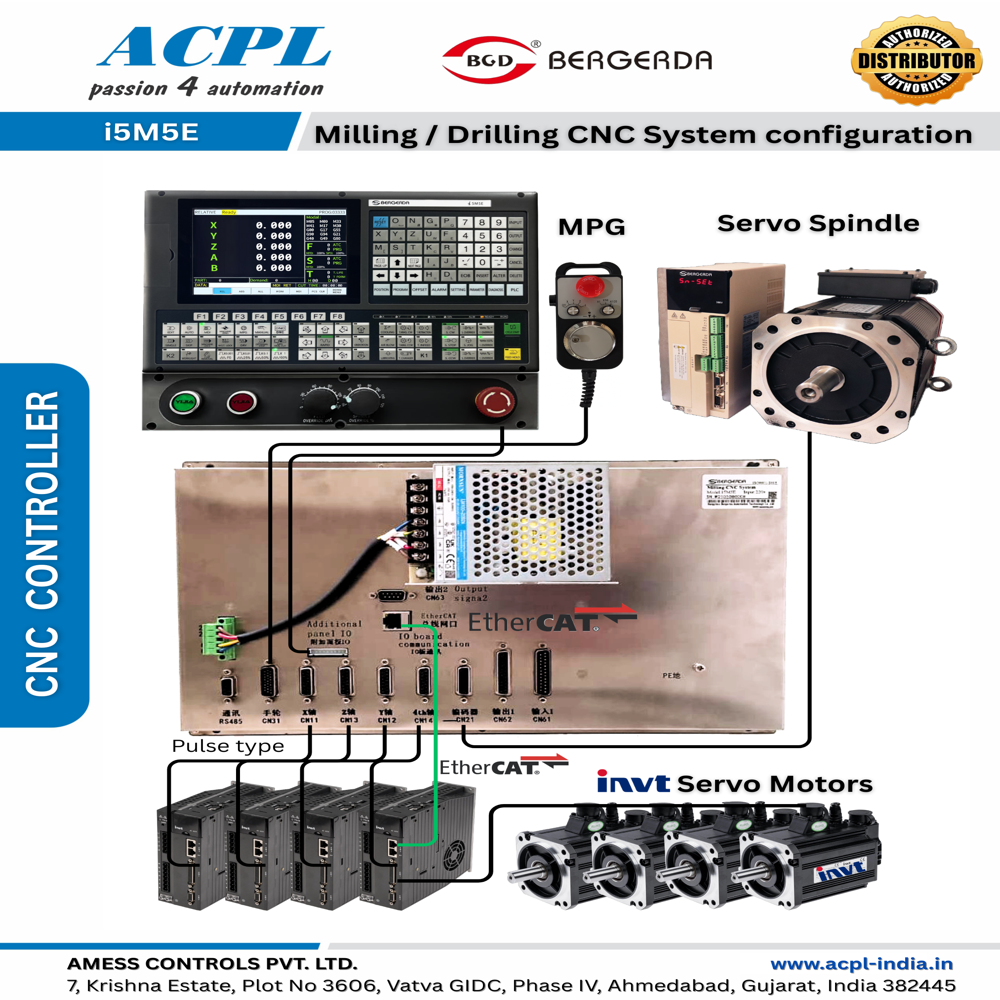

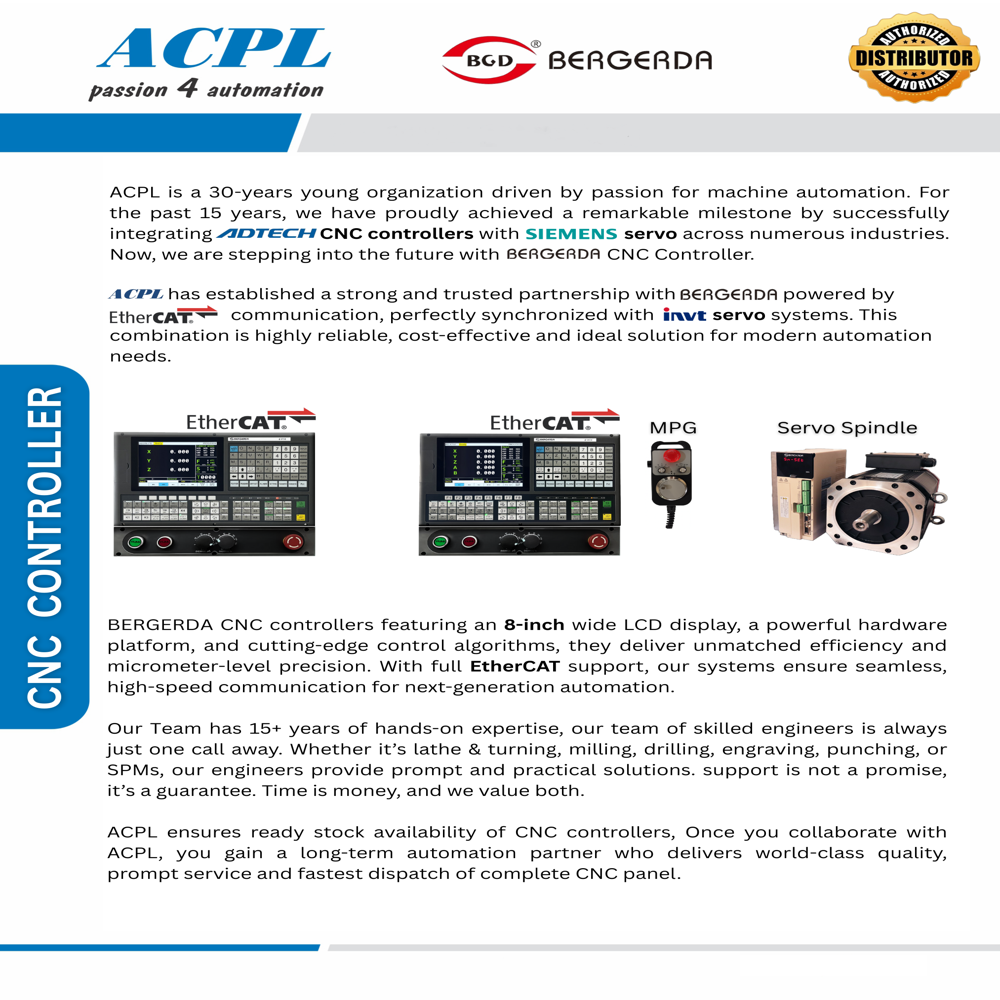

- ACPL has established a strong and trusted partnership with BERGERDA powered by EhterCAT communication, perfectly synchronized with INVT Absolute servo systems. This combination is highly reliable, cost-effective and ideal solution for modern automation needs.
Product Description

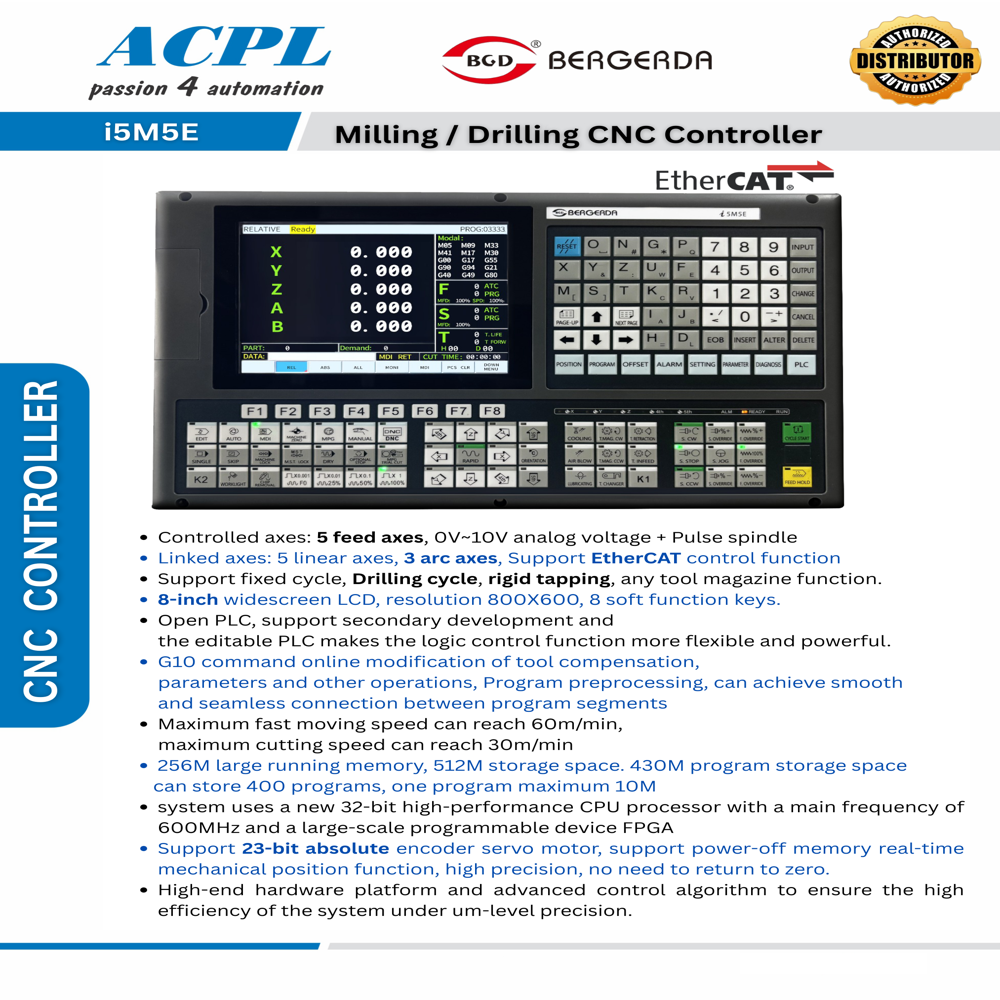

- Controlled axes: 5 feed axes, 0V10V analog voltage + Pulse spindle
- Linked axes: 5 linear axes, 3 arc axes, Support EtherCAT control function
- Support fixed cycle, Drilling cycle, rigid tapping, any tool magazine function.
- 8-inch widescreen LCD, resolution 800X600, 8 soft function keys.
- Open PLC, support secondary development and
the editable PLC makes the logic control function more flexible and powerful.
- G10 command online modification of tool compensation,
parameters and other operations, Program preprocessing, can achieve smooth
and seamless connection between program segments
- Maximum fast moving speed can reach 60m/min,
maximum cutting speed can reach 30m/min
- 256M large running memory, 512M storage space. 430M program storage space
can store 400 programs, one program maximum 10M
- system uses a new 32-bit high-performance CPU processor with a main frequency of 600MHz and a large-scale programmable device FPGA
- Support 23-bit absolute encoder servo motor, support power-off memory real-time mechanical position function, high precision, no need to return to zero.
- High-end hardware platform and advanced control algorithm to ensure the high efficiency of the system under um-level precision.
Intuitive Touch Screen Control
Equipped with a 7-inch LCD touch screen, this controller offers user-friendly navigation and setup. The interface makes it convenient to manage programs, modify parameters, and monitor live operations, thus reducing the learning curve for operators and enhancing productivity on the shop floor.
Versatile Axis Control and Connectivity
Supporting up to 4 simultaneous axes, the controller ensures precision for both milling and drilling operations. With comprehensive digital and analog I/O ports, as well as USB, RS232, and Ethernet interfaces, it seamlessly integrates with various machine tools and networks, offering unmatched flexibility and remote monitoring.
Reliable Performance and Safety Features
Designed for rugged industrial use, the controller features a built-in fan cooling system to maintain optimal temperatures and a real-time alarm function for immediate error detection. Its panel-mounted or standalone installation options offer adaptability across multiple manufacturing setups.
FAQ's of CNC Controller for Milling Drilling Machine:
Q: How do I install the CNC Controller for Milling Drilling Machine?
A: You can install this CNC controller either as a panel-mounted unit or as a standalone device, depending on your machine setup. Installation involves connecting the unit to a 220V AC power supply, wiring the relevant I/O ports, and integrating with your milling or drilling machine. Detailed installation instructions and wiring diagrams are provided in the user manual.Q: What types of machines and operations is this CNC controller suitable for?
A: This controller is specifically designed for CNC milling and drilling machines used in manufacturing industries. It supports automated control for a variety of milling and drilling tasks where precise, program-controlled operations are required.Q: When should I consider using the real-time alarm function?
A: The real-time alarm function automatically activates when the system detects any operational errors or faults during machining. It is especially useful for preventing costly damage or downtime by promptly notifying operators to address issues as soon as they occur.Q: Where can I access and modify the controller's programs?
A: Programs can be accessed and modified directly via the integrated 7-inch LCD touch screen. Additionally, you can upload or update programs using the USB port, Ethernet, or RS232 interface, facilitating both onsite and remote program management.Q: What process does the controller use to communicate with software and external devices?
A: Communication with external devices and software is handled through USB, RS232, and Ethernet interfaces. The controller supports standard G-code/ISO language and is compatible with common CAD/CAM software, allowing smooth integration into existing production workflows.Q: How does this controller benefit my manufacturing operation?
A: Utilizing this CNC controller increases machining accuracy (up to 0.01 mm), streamlines production through automated controls, and minimizes downtime via real-time error detection. Remote monitoring capabilities further bolster efficiency by enabling quick response to process anomalies.Tell us about your requirement
